Refrigerated Air Dryers
This compact, easy-to-use package prevents surface blemishes and poor paint adhesion caused by compressed air humidity.
Ideal for shops and facilities with 5-15 horsepower compressors, the Dryaire system is easy to install, easy to maintain and environmentally safe. It offers compact, high efficient heat exchangers, two-stage separator/filter, and a reliable air operated condensate drain.
- Features
- Ideal for body shops and industrial facilities
- No separate components to pipe together
- Single on/off switch, fault light
- Compact and highly efficient heat exchangers
TECHNICAL SPECS:
| Model | Use with Air Compressor Size | Flow Capacity | Power Requirements | Dimensions H” x W” x D” | Weight | Repair Kit |
| 6880 | 5.0 – 7.5 HP | 25 CFM | 115/1/60 | 28 x 10 x 13 | 81 lb | 39995 |
| 6885 | 10 HP | 35 CFM | 115/1/60 | 28 x 10 x 13 | 81 lb | 39995 |
| 6890 | 15 HP | 50 CFM | 115/1/60 | 37 x 17 x 17 | 150 lb | 39997 |
| 6895 | 20 HP | 75 CFM | 115/1/60 | 37 x 17 x 17 | 150 lb | 39996 |

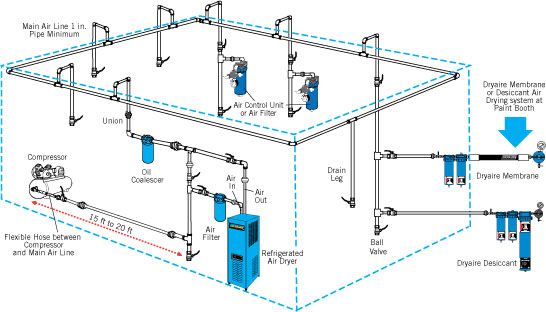

PIPING LAYOUT
