THE NEW WAVE
Model 6770

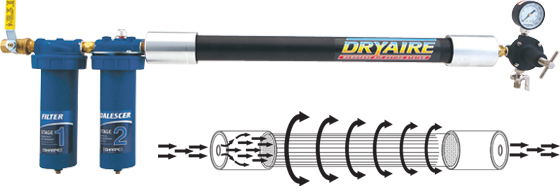

Advanced air drying technology for shop use. Lightweight, easy-to-install, and simple-to-operate, the Dryaire Membrane System maintains –40°F dew point while achieving 0% compressed air humidity. It removes oil and sub-micron particles down to .01 micron.
- Features
- Stage 1 filter provides removal of water and contaminants down to 5 microns
- Stage 2 coalescer provides removal of oil and sub-microns particles down to .01 microns
- Stage 3 membrane dryer is maintenance free, no regeneration required
TECHNICAL SPECS
| Part Number | Description |
| 6770 | Membrane System |
| 22645 | Stage 1 Replacement Filter Element |
| U23075 | Stage 2 Replacement Coalescer Element |
| 1-6770-3 | Stage 3 Replacement Membrane |
| Stage 1 | Stage 2 | Stage 3 | |
| Air Inlet, NPT | 1/2″ | 1/2″ | 1/2″ |
| Air Outlet, NPT | 1/2″ | 1/2″ | 1/2″ |
| Air Flow Capacity | 115 CFM (3.2 m3/min) | 70 CFM (2.0 m3/min) | 30 CFM (0.85 m3/min) |
| Max. Operating Pressure | 175 psi (1.2 MPa, 12 bar) | 175 psi (1.2 MPa, 12 bar) | 175 psi (1.2 MPa, 12 bar) |
| Max. Temperature | 150ºF (65ºC) | 150ºF (65ºC) | 175ºF (79ºC) |
Note: For the overnight drain to operate, turn off the air pressure.
