Model 6760

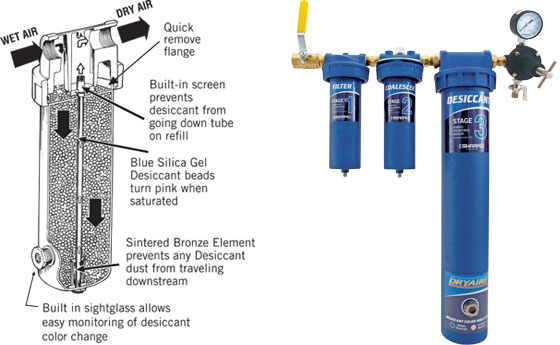

Remove dirt, water, oil and uncondensed moisture from compressed air lines. The Dryaire Desiccant System’s 100% indicating silica gel provides maximum moisture absorption. It features easy desiccant change out, regenerate, or replacement (6765-1) and changes color when saturated. This system maintains –40°F dew point while achieving 0% compressed air humidity.
- FEATURES
- Stage 1 Air filter includes auto drain (overnight) and 5-micron filter
- Stage 2 Coalescer with auto drain (overnight) removes oil particles down to .01 micron
- Stage 3 Desiccant Housing, 30 cfm capacity
- Self-relieving air regulators, mounting bracket, and shut-off valve included
TECHNICAL SPECS
| Part Number | Description |
| 6760 | Desiccant systems includes desiccants |
| 22645 | Stage 1 Replacement Filter Element |
| 22655 | Stage 2 Replacement Coalescer Element |
| 6765-1 | Stage 3, 5 lb replacement desiccant beads, 100% Silica Gel Desiccant |
| 289533 | Stage 3, replacement premium cobalt-chloride free silica gel, four 5 lb cans |
MORE TECHNICAL SPECS
| Stage 1 | Stage 2 | Stage 3 | |
| Air Inlet, FPT | 1/2″ | 1/2″ | 3/4″ (reduced to 1/2″) |
| Air Outlet, FPT | 1/2″ | 1/2″ | 3/4″ (reduced to 3/8″) |
| Air Flow Capacity | 108 CFM (3 m3/min) | 35 CFM (1 m3/min) | 30 CFM (0.85 m3/min) |
| Max. Operating Pressure | 175 psi (1.2 MPa, 12 bar) | 175 psi (1.2 MPa, 12 bar) | 175 psi (1.2 MPa, 12 bar) |
| Max. Temperature | 150ºF (65ºC) | 150ºF (65ºC) | 150ºF (65ºC) |
Note: For the overnight drain to operate, turn off the air pressure.
