Air Piping Layout

Shop Air Piping Layout Diagrams

As we all know, compressed air is a key element in everything we do in the shop. And the quality of the paint job on refinishing work is affected by the quality of the compressed air we use. The quality of our compressed air is also effected by how our air delivery lines are laid out in our shops.

The following two diagrams will show you a very good layout for shop air piping. I have also provided links so you may download these diagrams to your hard drive in Adobe PDF format where you can then print for future reference. A good piping layout, along with Sharpe’s full line of clean, dry air equipment, will save you from many problems and help you get the clean, quality compressed air you need to perform professional refinishing work.

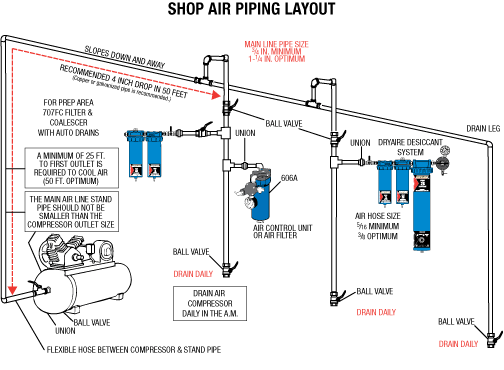

SMALL SHOP LAYOUT

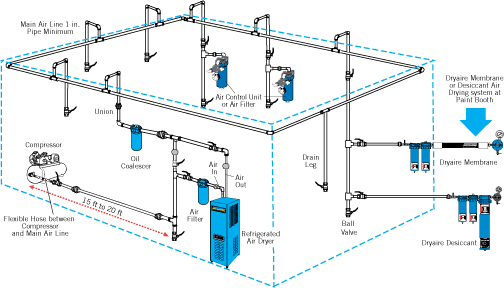

LARGE SHOP LAYOUT
